Early electro-discharge lightning Rod discharging rod lightning
conductor 4.3 3.3
The lightning rod has 5 types and the product are up to UNE
21.186,CEI 1024-1,NFC-17 102 standard,all of which are made of
stainless steel, each type has different protection range.
Structure:
1.Central Collection rod
2.Reflector
3.Igniter
4.Exciter
5.Exciter Base
6. The Reflector and exciter are isolated from the collection rod
7. Base for exciter are made of synthetic resin and is free from
erosion environment.
Feature:
· Non electronic type has a long service life
· 100% early stream discharge
· Higher level of protection
· High performance after repeated lightning strike
· Different protection radius selection
· Active interception of lightning
· Only activated when there is lightning
· Good looking design
· Design of the products has been tested in the labs
· No maintenance required
electro-discharge lightning Rod Details:
Protection Radius of Active ESE Rod

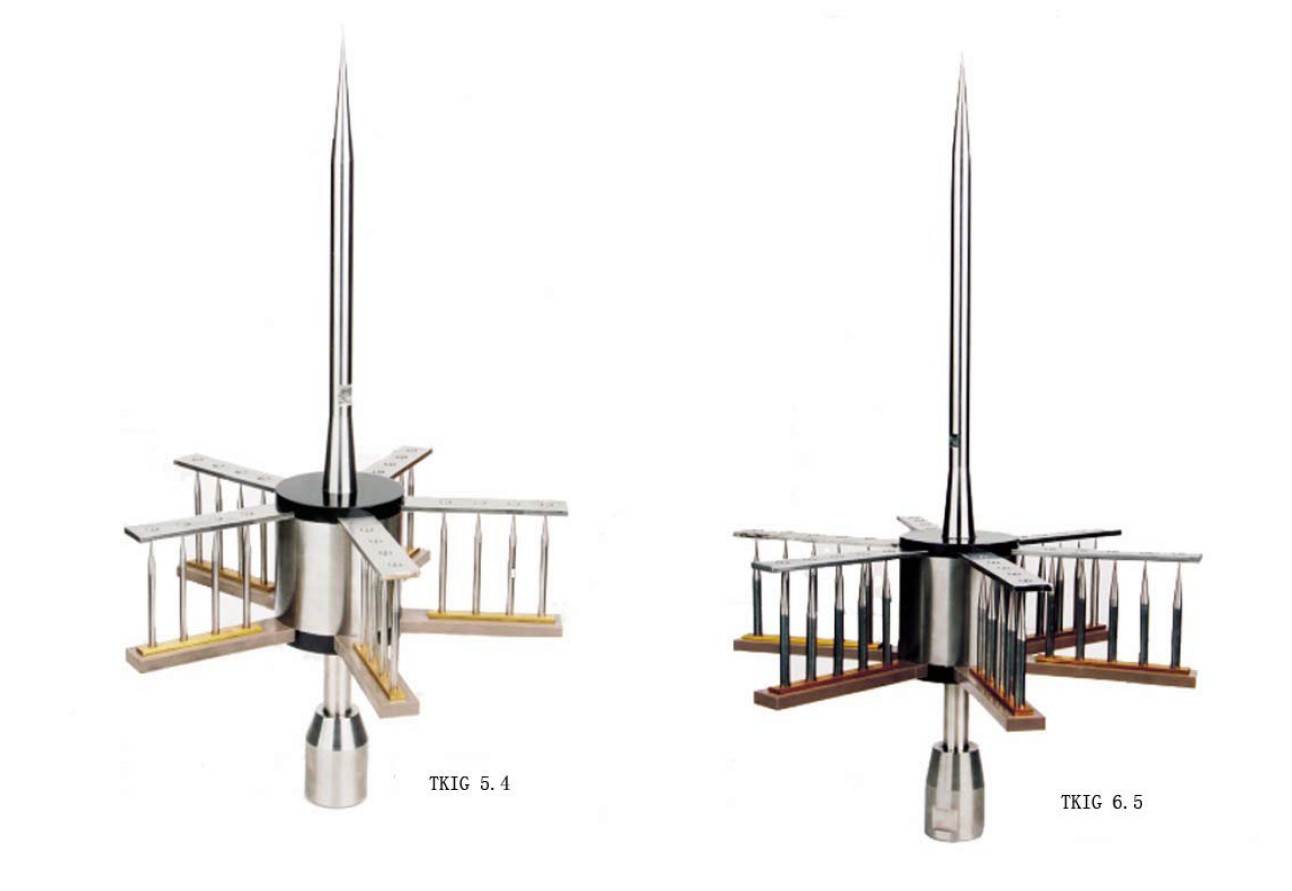

| TKIG-3.1 | TKIG -3.3 | TKIG -4.3 | TKIG -5.4 | TKIG -6.5 |
Category I
D=20M | 25M | 45M | 54M | 63M | 70M |
Category II
D=45M | 43M | 65M | 74M | 84M | 92M |
Category III
D=60M | 50M | 75M | 85M | 95M | 102M |
Pre start time
| MODEL | TKIG-3.1 | TKIG -3.3 | TKIG -4.3 | TKIG -5.4 | TKIG -6.5 |
| T(us) | 14 | 25 | 34 | 43 | 52 |
Tips: What is a surge protection device?
The surge protection device (SPD) is an electronic device that
provides a protection for electrical equipment, communication
network etc. from the effect of surges. When a current spike or
voltage surge suddenly occurs in an electrical circuit or a
communication line due to external interference, the SPD can
conduct the shunt in a very short time, thereby avoiding the damage
of the surge to other equipment in the circuit.
Surge protective devices are designed to minimize the effects of
the indirect and direct lightning or other transient overvoltage
surges, suitable for surge protection in residential, tertiary
industrial and other industrial applications. SPD has several
protection modes: L-L, L-G, L-N, N-G and its combinations.
The SPD surge protector is an indispensable device for lightning
protection in the electronic equipment. Its role is to restrict the
transient overvoltage that enters the power line and signal
transmission line to the voltage range that the device or system
can withstand, or to discharge powerful lightning current into the
ground, thus to protect the equipment or systems from shocks.
Our Services:
• 17 years global leading profession manufacture of electrical
products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own
requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Shipping:
Workshop:
FAQ:
Q1: What is the MOQ of each item?
A: Usually the MOQ is 1 pcs. If this product we have in stock,
there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All the product have two years guarantee. Any problem
feel free to contact us.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for
more than 17 yeas. We have full experience of producing surge
protection.
Q4: How to control the quality?
A: Each New product must be test before shipment. Our production
line full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within one week we can finished all the delivery.
If no have stock, normally around 3 weeks. It is depends on order's
quantity.
