    25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector

    Ask Lasest Price
    Brand Name : BRITEC
    Model Number : BR-25M 2P
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 50000 Piece/Pieces Month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

    25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector

    25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector


    25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector Features:


    • High performance varistor with thermal disconnection tripping device.
    • Protection class: Type 1, Class I.
    • Pole number: 2P.
    • Green/Red window color showing working status, green=normal, red=abnormal.

    25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector Technology characteristic:


    BR-25M 2P
    Max. continuous operating a.c. voltage Uc275V
    Voltage protection level Up≤1.3kV
    Lightning impulse current (10/350us) Iimp25kA
    Nominal discharge current (8/20us) In25kA
    Maximum discharge current (8/20us) Imax100kA
    Response time tA≤25ns
    Test standardIEC61643-1
    Operating temperature range Tu-40℃—80℃
    Relative humudity(25°C)≤95%
    For mounting on35mm Din rail
    Enclosure materialThermal plastic UL94-V0

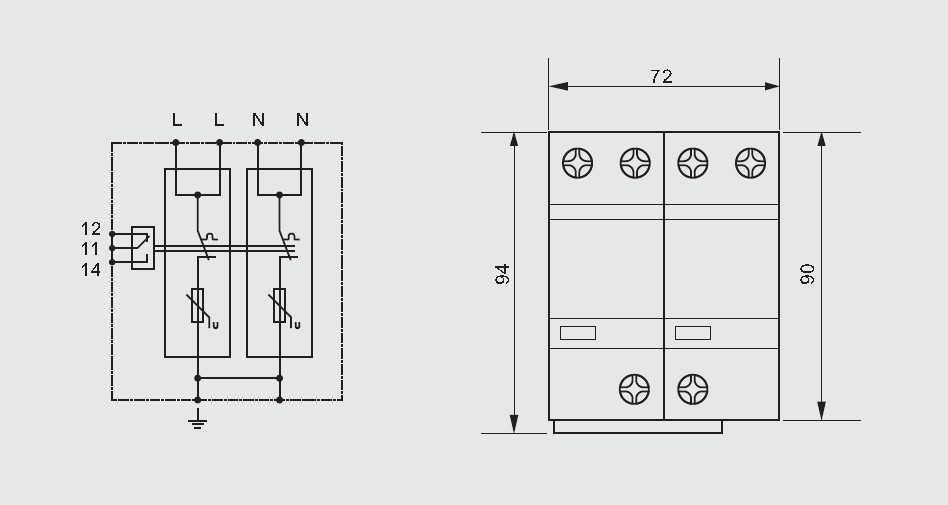

    Dimension:



    25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector Application:


    • Protecting low-voltage consumers' installations against indirect lightning discharges.
    • Used to guard sensitive equipment from voltage spike.

    Our Services:
    • Reply inquiry within 24 hours.
    • Answer your detailed question.
    • Freight forwarder: faster, safer, and convenient.
    • Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.

    Company Information:


    Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.


    25kA Ac Surge Arrester Din Rail 275V 2P Single Phase Surge Protector


    Certification:



    Product process:



    Shipping:



    FAQ:


    Q1: How long is the delivery time?
    A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.


    Q2: What is the warranty for the surge protection?
    A: Two years.


    Q3: What is the payment terms?
    A: T/T, Paypal, etc.


    Q4: How about the products quality?
    A: Our products have got CE, CB, TUV certificates.


    Q5: Is it OK to print my logo on lightning arrester?

    A: Yes. Please inform us formally before our production.
